Revolvers & Leather from the Past #2


















This is the second "Revolvers & Leather from the Past" post I've done. If you missed the first one click HERE to view it.

Wednesday, July 20, 2016

1862 Confederate Musketoon







This musketoon is quite interesting. Obviously assembled and altered by using some parts from the captured Harpers Ferry Armory and fitted with a lock from the Richmond Armory. The Richmond lock pretty much dates and explains that it was likely assembled at the Richmond Armory.

It has a 33 inch smooth bore barrel, without bayonet lug, with a blade front sight in a stud and three leaf folding rear sight. The barrel is fitted to an altered U.S. Model 1855 type walnut stock with iron patch box and buttplate. One iron barrel band and a dual band brass forend band with a sling swivel, similar to what is often seen on J.P. Murray Musketoons. The second sling swivel is mounted to the front of the trigger guard.
The lock plate has the Richmond Armory "Type II" characteristics of a hump between the hammer and bolster, "1862" marked vertically behind the hammer and marked "C.S./RICHMOND V.A." at the front. The barrel has "V/P/eagle head' inspection and proof marks near the breech.

The Civil War was disastrous for Harpers Ferry, it changed hands eight times between 1861 and 1865.
When Virginia seceded in April 1861, the U.S. garrison attempted to burn the arsenal and destroy the machinery but the locals saved the buildings.
The Confederate Army transferred equipment and inventory to a more secure location in its capital of Richmond.
Inventory included forgings, dies, parts and surviving rifles, of various models, all were used to construct weapons for the Southern war effort.




Not all my blog posts go on facebook! Don’t miss a post from this blog.


Go to the upper right and enter an email address and you will be send an email regarding each new blog post. This is spam free! You will not receive any junk email! Try it, you can always cancel.










Sunday, July 17, 2016

Forehand & Wadsworth Army Revlovers



                  Forehand & Wadsworth "Old Model" Army
 Sullivan Forehand and Henry Wadsworth each married one of Ethan Allen's daughters and were part of E. Allen & Co. until they restructured the business as Forehand & Wadsworth upon Allen's death in 1871.
The "Old Model" Army was manufactured in the mid 1870s, it is estimated that less than 1,000 of these revolvers were manufactured and there is no suggestion these revolvers were purchased by the U.S. Government, although collectors classify the revolver as a "Secondary Martial" weapon. The revolver is chambered for the 44 caliber Russian centerfire cartridge.

_________________________________________________

                 Forehand & Wadsworth New Model Army
 As with Allen's firearms, their guns were high quality weapons. The New Model Army revolvers were improved versions of the mid-1870s Old Model.
Manufactured circa late 1870s to 1880s with a total of less than 1,000 produced. The new model is similar to the old model except for the barrel length, the side mounted ejector rod, a safety notch in the hammer and the presence of an exposed cylinder pin.



Being no dummies, Forehand and Wadsworth also pursued the military market, inspired by the lucrative government procurement's during the Civil War. However, postwar contracts never came.
This resulted in what enthusiasts consider the Holy Grail of F&W collecting: the .44-caliber Old Model Army and New Model Army.










Largely forgotten today, Forehand & Wadsworth was for a time one of the nation’s best-known manufacturers of small, concealable revolvers. In a market flooded with inexpensive pocket guns the guns of Forehand & Wadsworth managed to retain some respectability.
Wadsworth sold his share of the company to Forehand in 1890 in order to retire and the company was rebranded as Forehand Arms.


Forehand's sons ran the business for several years following the death of their father, but sold it in 1902 to Hopkins & Allen, whom had been making Forehand Arms other lines of revolvers under contract.

Wednesday, July 13, 2016

Spencer M-1860 Rifle





Probably no one weapon of the US Civil War is more representative of the overwhelming force of industry and technology brought to bear by the North against the South than the US M-1860 series of rifles & carbines affectionately called "the horizontal shot tower", known more commonly as the Spencer.

At first, the view by the Department of War Ordnance Department was that soldiers would waste ammunition by firing too rapidly with repeating rifles, and thus denied a government contract for all such weapons.  More accurately, they feared that the armies logistics train would be unable to provide enough ammunition for the soldiers in the field, as they already had grave difficulty bringing up enough ammunition to sustain armies of tens of thousands of men over distances of hundreds of miles. A weapon able to fire several times as fast would require a vastly expanded logistics train and place great strain on the already overburdened railroads and tens of thousands of more mules, wagons, and wagon train guard detachments. The fact that several Springfield rifle-muskets could be purchased for the cost of a single Spencer carbine also influenced thinking.

However, the Spencer rifle along with other makes were eventually adopted by the Union and saw service during the American Civil War. By war’s end some 11,470 of the Spencer military rifles were delivered to the US military between 1863 and 1865, and nearly five times that many carbines saw service as well.





Pictured is a pristine Model 1860 Spencer Repeater Army issue rifle, produced in the 1863-1864 time frame. The .52 caliber rifle weighs ten pounds and used the 56-56 Spencer rimfire cartridge. Rifle measures 47” overall with a 30” round barrel. This particular rifle was manufactured in 1864.




___________________


Developed by Erastus Blakeslee, a Colonel with the 1st Connecticut Volunteer Cavalry, the Blakeslee cartridge boxes carried soldered iron tubes loaded with seven cartridges for the Spencer Repeater, This model carries 10 tubes, which allowed for rapid reloading. Only 10,000 of these cartridge boxes were manufactured.




Sunday, July 10, 2016

-Whitney Navy Revolvers-


The most famous and easily recognized revolver manufactured by Eli Whitney, Jr . was his Navy Model. It was a 6-shot, .36 caliber single action percussion revolver with a standard barrel length of 7 5/8 inches. They went into production shortly after Colt’s patent on his revolver mechanism expired in 1857 and were manufactured through the early 1860's.
Approximately 35,500 revolvers were manufactured, including about 1,500 of the First Model, which were manufactured without a loading lever and approximately 34,000 of the Second Model. Both models went through a few improvements, resulting in four “types” of the First Model; and five “types” of the Second Model.
Whitney’s desire to improve upon the guns plus the habit of making design changes when parts on hand ran, out has resulted in some confusion for collectors.

The US Army acquired 10,587 of the revolvers between 1861 and 1864 and the US Navy purchased an additional 6,226 between 1863 and 1865.
A number of Whitney Navy revolvers were also in the hands of Confederate soldiers, most notable example being one which was owned by Confederate cavalry general J.E.B. Stuart, and is now in the collection of the Virginia Historical Society. Collectors confir, that at least two-dozen Whitney Navy revolvers are known to have been repaired for use by the 4th Virginia “Black Horse” Cavalry, and a handful of identified Whitney Navy revolvers with Confederate provenance exist was well.
Some were purchased prior to the outbreak of the War and these guns tend to early production 2nd Model revolvers produced prior to the spring of 1861. However, Confederate forces acquired many more Whitney Navy revolvers after the conflict started. These later production guns were no doubt obtained through a combination of capturing weapons and purchasing the guns from secondary retailers rather than directly from Whitney.

It is not surprising that the revolver found favor on both sides of the Mason-Dixon line, as the robust design with a reinforcing top strap, a solid frame with a screwed in barrel and the simple turn of a wing nut to release the loading lever and cylinder arbor were all significant improvements over the open topped frame and wedge-retained barrel of the Colt design. The popularity of the revolvers in the south is further indicated by the fact that the design was copied by Confederate gunmakers Spiller & Burr and T.W. Cofer, both of whom produced Whitney-like revolvers for the south.



__________________________


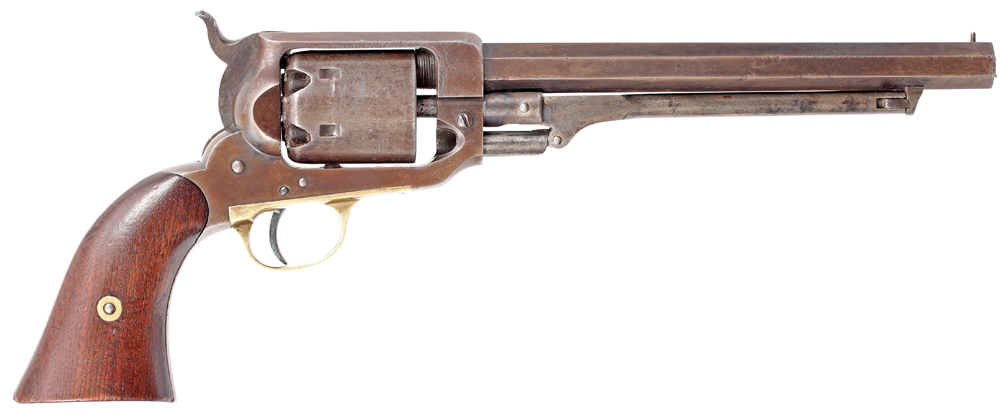

2nd Model, 4th Type

______________________________





The above Whitney revolver is the 5th Type of the 2nd Model which would be the last production Whitney Navies. It has features which include: (1) seven-groove rifling, (2) large brass trigger guard, (3) "Whitneyville" marked shield on cylinder scene, (4) "wedge" type loading lever latch, and (5) six stop cylinder.

___________________________________



Wednesday, July 6, 2016

Joslyn Model 1864 Carbine










This is a Model 1864 Joslyn carbine. Benjamin F. Joslyn received U.S. Patents 33,435, 35,668, 39,407 and 42,000 dated respectively October 8, 1861, June 24, 1862, August 4, 1863 and March 4, 1864. The basis for the first of these was the swinging breech block feature, with the later patents being essentially refinements to the original.
The Model 1864, is sometimes called the Second Model. The Joslyn Fire Arms Company of Stonington, Connecticut, produced two swinging breech block models for the U. S. government, the M-1862 and M-1864. The early M-1862 used the percussion ignition while the later M-1864 used the rimfire system.

Designed for field use with Federal horse soldiers, the Joslyn was simple to use and employed a rimfire cartridge very much like the Spencer’s .56-.56 cartridge or its own special .54 Joslyn cartridge. Joslyn’s unique loading arrangement consisted of pulling out the breechblock knob, pivoting the breechblock up and to the left and then inserting the round. However, Joslyn’s single-shot design was as not as popular as the Spencer’s repeating multi-shot rimfire capability so Joslyn carbines were retired from service at the end of the war.

Deliveries of the Joslyn cartridge carbines came between November 27, 1861 and February 25, 1865, and approximately 11,000 Joslyn rimfire carbines were produced and procured by the government during the Civil War.

Joslyn carbines in varying numbers are known to have been in the hands of the following volunteer cavalry regiments at one time or another during the war: Fourth Indiana; First New York Dragoons; Nineteenth New York; Second, Third, Fourth and Sixth Ohio; Thirteenth Tennessee; Third West Virginia, and First Wisconsin. Additional units undoubtedly also used these arms.







_____________________


In late 1864 the Ordnance Department bought 3,007 Joslyn actions to be used in rifles that resembled the Springfield Model 1863 .58 caliber rifle muskets.

This is an example of a Joslyn/Springfield breech loading rifle. It was the first breech loading rifle manufactured at a national armory. Springfield Armory assembled all 3,007 of these rifles in January to June of 1865, utilizing breech units supplied by Joslyn Firearms Company and specially fabricated barrels and stocks designed at the armory specifically for this action. The rifle was chambered for the 50-60-450 cartridge loaded at the Frankfort Arsenal. Springfield Armory subsequently re-chambered 1,600 of the Joslyn Rifles for the 50-70 cartridge; these rifles were exported to France in 1870. Experts believe that some Joslyn Rifles were issued to the Union Army before the Civil War ended in April 1865. The rifle has a 35 1/2 inch barrel chambered for the 50-60-450 Joslyn rimfire cartridge.
